The first "Chaocipher Progress Report",
published on this web site back in February 2009, highlighted an
intriguing characteristic in Exhibit #1 for in John F. Byrne's chapter
21 in "Silent Years". Greg Mellen, the author of the excellent
article in Cryptologia (Volume 3 Number 3, July 1979, pp. 136-154)
entitled “J.
F. Byrne and the Chaocipher: Work in Progress”, noted
that identical back-to-back plaintext letters were never enciphered
into identical ciphertext letters:
A LL G OO D QQ UICKBROWNFOXES...
Line
1: C LY T ZP N ZK LDDQGFBOOTYSNE...
Line
2: L TV F IC O TS SLWYYIHBICFUTH...
Line 3:
T BZ X TM V GL TJXCSQXLNJTENC...
Line 4:
H KY G QJ T OG YSDBNVDJOWHKEC...
Line 5:
R IF F ZA Q NH SOMJPORWTJOIJI...
Line 6:
J EO Z IF K JC FMETESYYHZUVLF...
Line 7:
W EF R FY H KX OPKXRQSZKLCZKH...
Line 8:
B UZ L AG D BC UAMFQLACRWWTUG...
Line 9:
R UT K FK A SG VLVYYFVRAIYNIV...
Line10:
U KQ A SX K GS PWHRYMTQSOQBAM...
|
As
can be seen in this truncated table, the doubled letters (e.g., "LL",
"OO", "QQ")
are never enciphered into two identical ciphertext letters (the table
here shows only the first ten lines, but it is true throughout the
entire Exhibit #1).
Let's call two identical (pt,ct) pairs as a
"hit". We will word the above observed phenomenon
as "hits
do not occur as a
distance of one (1)".
Interestingly enough, searching through Exhibit #1, we find that "hits
do not occur at a distance of two (2)".
Continuing
this experimental research, we find that, in Exhibit #1, the closest
distance between
two hits is nine (9). Here the four (4) instances in Exhibit
#1 of
hits at a distance fo nine (9):
| Offset |
Plain
/ Cipher |
| 4207 |
[UMP]
OVERLAZYDO
[GTO]
[QFK] EHGUTNFVTE
[UOQ] |
| 7800 |
[EWO]
ULDRELINQU
[ISH]
[BVD] BFBWYZLOYB [SST] |
| 7864 |
[NES]
TIMABLETOT
[HEM]
[IGY] ARLTYSNDFA
[LTT]
|
| 9838 |
[THE]
SECOLONIES
[VFO]
[VZN] XYPJKPVESX
[NUD] |
This discovery
fueled almost all of the Chaocipher research up until the cipher system
was revealed. This phenomenon had to be causal, and must have
sprung
from Chaocipher's internal algorithm. A working
assumption was that
any Chaocipher model put forward needed to replicated this observation
that "hits
do not occur at a distance less than nine (9)".
Chaocipher Progress Report #26
announced the surprising fact that the lower bound of hits occurring
was
not nine (9), but rather seven (7). In other words, the
phenomenon
could be described as:
"Hits never occur at a distance
less than 7"
Additional
research showed that, when exhaustively iterating through a subset of
possible encipherings, seven (7) was indeed the theoretical
minimum distance. In other words, hits could never occur at a
distance
of 6, 5,
4, 3, 2, or 1.
A challenge for proving the assertion is issued
In February 2019 I uploaded a post for the readers of the
Tapatalk Crypto Forum. Entitled "Looking
for mathematical reason why classic Chaocipher never shows pt/ct "hits"
less than a distance of seven (7)",
I challenged the readers to prove methematically that this result was
indeed correct. At the time it was not clear why this was
seemingly inherent in the Classic Chaocipher algorithm, and how to go
about proving the premise. No one replied to the post, so the
challenge remained unanswered.
I recently felt the urge to "bite the bullet" and prove this important
assertion using mathematically or algorithmic proofs. In
short
order, I was able to prove that, indeed, hits can never occur in less
that a distance of seven (7). The proof is
interesting in its own right, and may provide a valuable method for
proving other cryptanalytic problems.
Using the "roaming zenith" method for displaying successive
pt/ct alphabets
As explained in the page "Two ways to
permute and display Chaocipher alphabets" found in
this progress report, there are two cryptographically
equivalent ways to present successive Chaocipher left and right
alphabets. These are known as the "fixed zenith" and "roaming
zenith" methods. The "roaming zenith" method was developed
specifically to analyze the "no hits < 7" problem. It
was believed that this presentation method would enable one to better
understand and feel the gradual diffusion of the alphabets, and might
provide the necessary insight to solving the problem. And it
did indeed.
Therefore, in the sections below, we will be using the "roaming zenith"
method to present the proof.
Understanding how Chaocipher alphabets change in a
single encipherment
Let's begin with a simple example to understand what we're up against.
We will assume that both the left (ciphertext) and
the right (plaintext) alphabets are straight alphabets (i.e., A to Z):
Left (ct):
ABCDEFGHIJKLMNOPQRSTUVWXYZ
Right (pt):
ABCDEFGHIJKLMNOPQRSTUVWXYZ
In our example, we want to study the pt/ct pair (A/A), observing how
they move relative to each other based on encipherments.
Throughout our proof, we will be scrutizing the relative
positions, or distance between, both the two letters, Act
and Apt.
We define the distance between Act and Apt
as the difference between the offsets of Act
and Apt, modulo 26. In the current
state of the two alphabets, the distance is offset (Act)
- offset (Apt) = 0 - 0 = 0. We will
refer to this alphabet juxtaposition as a "distance of zero (0)".
We now encipher a plaintext letter. For this
example, we choose to encipher the plaintext letter found at
an offset of 0 to the right of Apt - in other
words, we will encipher Apt itself.
Using the "roaming zenith" method of displaying the
alphabets, we obtain the following alphabets after enciphering Apt:
Left (ct): ACDEFGHIJKLMNBOPQRSTUVWXYZ
Right (pt):
BCEFGHIJKLMNODPQRSTUVWXYZA
We see that we now have an alphabet juxtaposition of a
"distance of 1". This is because offset (Act)
- offset (Apt) = 0 - 25 (mod 26) = -25 (mod 26)
= 1.
Let's recap: enciphering the plaintext letter at offset 0
to Apt, using alphabets juxtaposed at a
distance of 0, resuts in an alphabets juxtaposed at a distance of 1.
Now we'll go back to alphabets juxtaposed at a distance of 0, but will
encipher the plaintext letter at an offset of 1 to the right
of Apt, i.e., Bpt.
We now get the following alphabets:
Left (ct): ABDEFGHIJKLMNOCPQRSTUVWXYZ
Right (pt):
BCDFGHIJKLMNOPEQRSTUVWXYZA
Although the alphabets differ ever so slightly from the previous
encipherment, the alphabet juxtaposition distance remains 1.
Enciphering Mpt using the alphabets juxtaposed
at distance 0, we get alphabets at a distance of offset (Act)
- offset (Apt) = 0 - 24 (mod 26) = -24 (mod 26)
= 2:
Left (ct): ABCDEFGHIJKLMOPQRSTUVWXYZN
Right (pt):
BCDEFGHIJKLMNOQRSTUVWXYZAP
Enciphering Xpt results in an even larger
alphabet juxtaposition distance of 25 - 10 = 15:
Left (ct):
BCDEFGHIJKYLMNOPQRSTUVWXZA
Right (pt):
CDEFGHIJKLAMNOPQRSTUVWXYZB
If we enciphered each one of the 26 possible plaintext letters as we
did above, we would obtain all 26 alphabet juxtaposition transitions
possible beginning with alphabets at a distance of 0:
0 1 2 3 4 5
6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
21 22 23 24 25
0:
1 1 1 1 1 1
1 1 1 1 1 1
2 1 1 1 1 1
1 1 1 1 1 15 0 13
The "0:" at the left denotes that the alphabet juxtoposition distance
is 0, while the numbers 0-25 on top refer to the plaintext offset
relative to Apt. You can see that
enciphering Apt (a distance of 0)
transitions to a alphabet
juxtaposition distance of 1, Mpt (a distance of
12) transitions to
2, Xpt (distance of 23) to 15, and Zpt
(distance of 25) to
13. All other plaintext letters transition to 1.
Summarizing all possible alphabet changes in a single table
In the previous section we concentrated on enciphering all possible
plaintext letters starting with alphabets juxtaposed at a distance of
0. We can do the same for the other 25 alphabets juxtaposed
at distances of 1 through 25. The following table summarizes
the results of all 26 alphabet juxtapositions, for all 26 possible
plaintext letters:
0 1 2 3 4 5
6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
21 22 23 24 25
------------------------------------------------------------------------------
0:
1 1 1 1 1 1
1 1 1 1 1 1
2 1 1 1 1 1
1 1 1 1 1 15 0 13
1:
14 2 2 2 2
2 2 2 2 2 2
2 3 3 2 2 2
2 2 2 2 2 2
16 1 1
2:
2 15 3 3 3 3
3 3 3 3 3 3
4 4 4 3 3 3
3 3 3 3 3 17
2 2
3:
3 3 16 4 4 4
4 4 4 4 4 4
5 5 5 5 4 4
4 4 4 4 4 18
3 3
4:
4 4 4 17 5 5
5 5 5 5 5 5
6 6 6 6 6 5
5 5 5 5 5 19
4 4
5:
5 5 5 5 18 6
6 6 6 6 6 6
7 7 7 7 7 7
6 6 6 6 6 20
5 5
6:
6 6 6 6 6 19
7 7 7 7 7 7
8 8 8 8 8 8
8 7 7 7 7 21
6 6
7:
7 7 7 7 7 7
20 8 8 8 8
8 9 9 9 9 9
9 9 9 8 8 8
22 7 7
8:
8 8 8 8 8 8
8 21 9 9 9 9 10 10 10 10 10 10
10 10 10 9 9 23 8 8
9:
9 9 9 9 9 9
9 9 22 10 10 10 11 11 11 11 11 11 11 11 11 11 10 24
9 9
10: 10 10
10 10 10 10 10 10 10 23 11 11 12 12 12 12 12 12 12 12 12 12 12 25 10 10
11: 11 11
11 11 11 11 11 11 11 11 24 12 13 13 13 13 13 13 13 13 13 13
13 1 11 11
12: 12 12
12 12 12 12 12 12 12 12 12 25 14 14 14 14 14 14 14 14 14 14
14 2 13 12
13: 13 13
13 13 13 13 13 13 13 13 13 13 1 15 15 15 15 15 15 15 15 15
15 3 14 14
14: 15 14
14 14 14 14 14 14 14 14 14 14 15 2 16 16 16 16 16 16 16 16
16 4 15 15
15: 16 16
15 15 15 15 15 15 15 15 15 15 16 16 3 17 17 17 17 17 17 17
17 5 16 16
16: 17 17
17 16 16 16 16 16 16 16 16 16 17 17 17 4 18 18 18 18 18 18
18 6 17 17
17: 18 18
18 18 17 17 17 17 17 17 17 17 18 18 18 18 5 19 19 19 19 19
19 7 18 18
18: 19 19
19 19 19 18 18 18 18 18 18 18 19 19 19 19 19 6 20 20 20 20
20 8 19 19
19: 20 20
20 20 20 20 19 19 19 19 19 19 20 20 20 20 20 20 7 21 21 21
21 9 20 20
20: 21 21
21 21 21 21 21 20 20 20 20 20 21 21 21 21 21 21 21 8 22 22 22
10 21 21
21: 22 22
22 22 22 22 22 22 21 21 21 21 22 22 22 22 22 22 22 22 9 23 23
11 22 22
22: 23 23
23 23 23 23 23 23 23 22 22 22 23 23 23 23 23 23 23 23 23 10 24 12 23 23
23: 24 24
24 24 24 24 24 24 24 24 23 23 24 24 24 24 24 24 24 24 24 24 11 13 24 24
24: 25 25
25 25 25 25 25 25 25 25 25 24 25 25 25 25 25 25 25 25 25 25
25 0 25 25
25:
0 0 0 0 0 0
0 0 0 0 0 0
0 0 0 0 0 0
0 0 0 0 0 14 12 0
This table summarizes all alphabet transitions possible for
Classic Chaocipher. In the next section we will see how to
convert this table to a directed graph.
Creating a directed graph from the alphabet change table
Converting the previous table data into a form
accepted by Graphviz,
we paste the DOT
data file into an online Graphviz renderer, such as Edotor to create and
export a
directed graph:

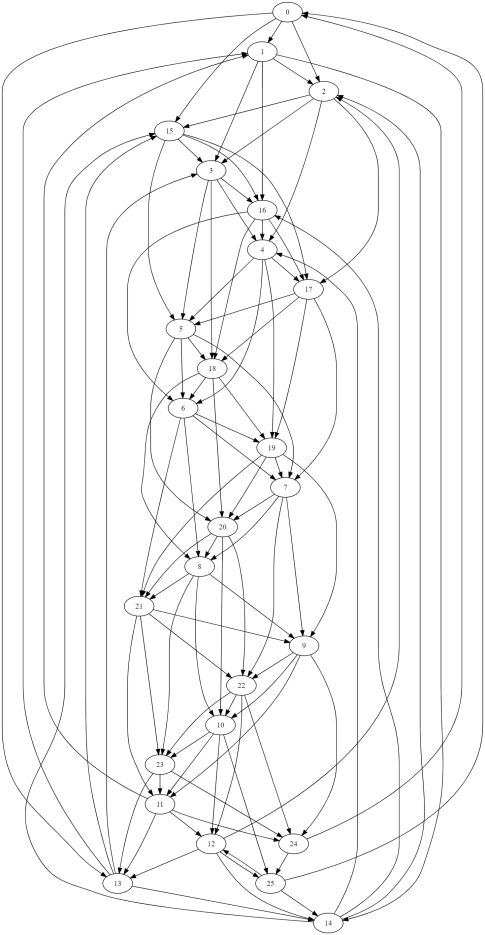

Now we have a visual directed graph that illustrates transitioning
between alphabet juxtaposition distances. Assuming we begin
with our pt/ct letters at a distance of 0, we need to find the shortest
path from node 0 back to itself. Here are a few observations
about the directed graph:
- Although node 0 transitions to four (4) other nodes (i.e.,
1, 2, 13, 15), we're only interested in transitioning to node 1.
- This is because we're looking for the shortest path that
begins and end with enciphering Apt to Act.
This initial enciphering will always take us from
node 0 to node 1.
- The other three node transitions (i.e., 0 → 2, 0 →
13, 0 → 15) are due to enciphering a plaintext letter other
than Apt (i.e., they encipher Mpt, Zpt, and Xpt, respectively), which are not relevant for the proof.
- We have removed all edges that loop back on the same node,
as they lengthen the path without making any
progress to the target node.
- The only nodes that transition to node 0 are nodes 24 and
25.
You can play with the graph, trying to find the shortest path.
For example, the path:
0 → 1 → 3
→ 4 → 19 → 21 → 22
→ 24 → 25 → 0
produces a "hit" in nine (9) steps. Our goal is to find the shortest
path from node 0 back to itself.
Proving the "no hits < 7" assertion using Dijkstra's
Shortest Path First (SPF) algorithm
The final step is find an algorithm that will find the shortest path
between two nodes within a directed graph. Fortunately, such
an algorithm exists, and is known as Dijkstra's
Shortest Path First (SPF) algorithm. We use a Python
implementation of the algorithm, with modifications made for
our purposes, and keep the following in mind:
- We cannot tell the algorithm to find the shortest path from
node 0 to node 0, as it will return a path size of 0, i.e., no
transition is needed to travel from 0 to 0. Therefore, we wil
move to another node and then run the algorithm.
- We are only interested in paths that begin with the
transition of "0
→ 1"
- The algorithm will be directed to compute the shortest
path from node 1 back to node 0.
- Adding one (1) to the shortest path found in step 3 will
give us the shortest hit distance possible.
Here are the results of running the SPF algorithm:
1
-->
0
6
1 3 5 7 9 24 0
1 -->
1
0
1
1 -->
2
1
1 2
1 -->
3
1
1 3
1 -->
4
2
1 2 4
1 -->
5
2
1 3 5
1 -->
6
2
1 16 6
1 -->
7
3
1 3 5 7
1 -->
8
3
1 16 6 8
1 -->
9
4
1 3 5 7 9
1 -->
10
4
1 16 6 8 10
1 -->
11
4
1 16 6 21 11
1 -->
12
5
1 16 6 8 10 12
1 -->
13
5
1 16 6 21 11 13
1 -->
14
1
1 14
1 -->
15
2
1 2 15
1 -->
16
1
1 16
1 -->
17
2
1 2 17
1 -->
18
2
1 3 18
1 -->
19
3
1 2 4 19
1 -->
20
3
1 3 5 20
1 -->
21
3
1 16 6 21
1 -->
22
4
1 3 5 7 22
1 -->
23
4
1 16 6 8 23
1 -->
24
5
1 3 5 7 9 24
1 -->
25
5
1 16 6 8 10 25
The algorithm computed that the shortest path from node 1 to node 0 has
a length of 6 (it shows one of many possible paths, in this case
1-3-5-7-9-24-0). Adding one more because of the required
initial
transition from node 0 to node 1 gives us the desired result: the
shortest distance to produce a "hit" in Classic Chaocipher is seven (7)
steps.
Q.E.D.
Copyright
(c) 2020 Moshe Rubin
Created: 1 August 2020
Last modified: 15 January 2021
